Perfect Combination of Practical Technology Optical LED street Light

Model Number : EK-LDC16
Име на производ: LED улично светло
Препорачај вати: 50w 100w 150w 200w
Waterproof Index : IP66
Индекс отпорен на земјотреси: IK08 IK09
Working Temperature(℃): -20-50
Surface Color : RAL9007 (available on request)
Contain Accessories : Complete finished street lights

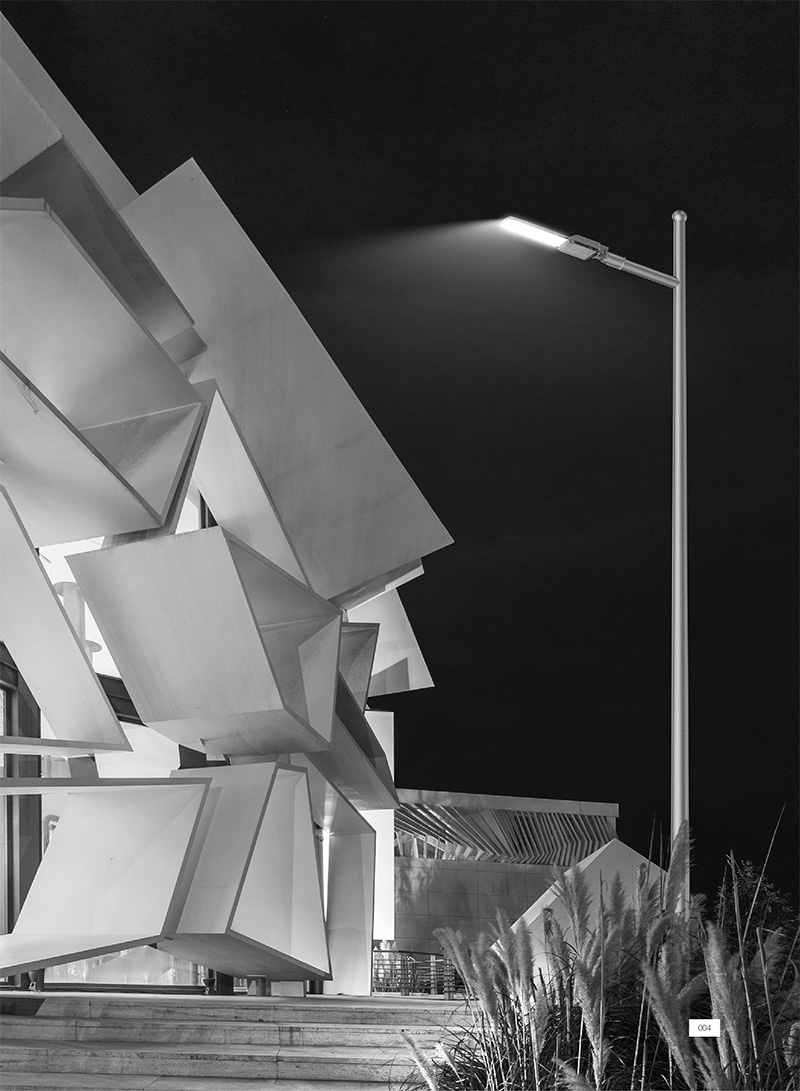

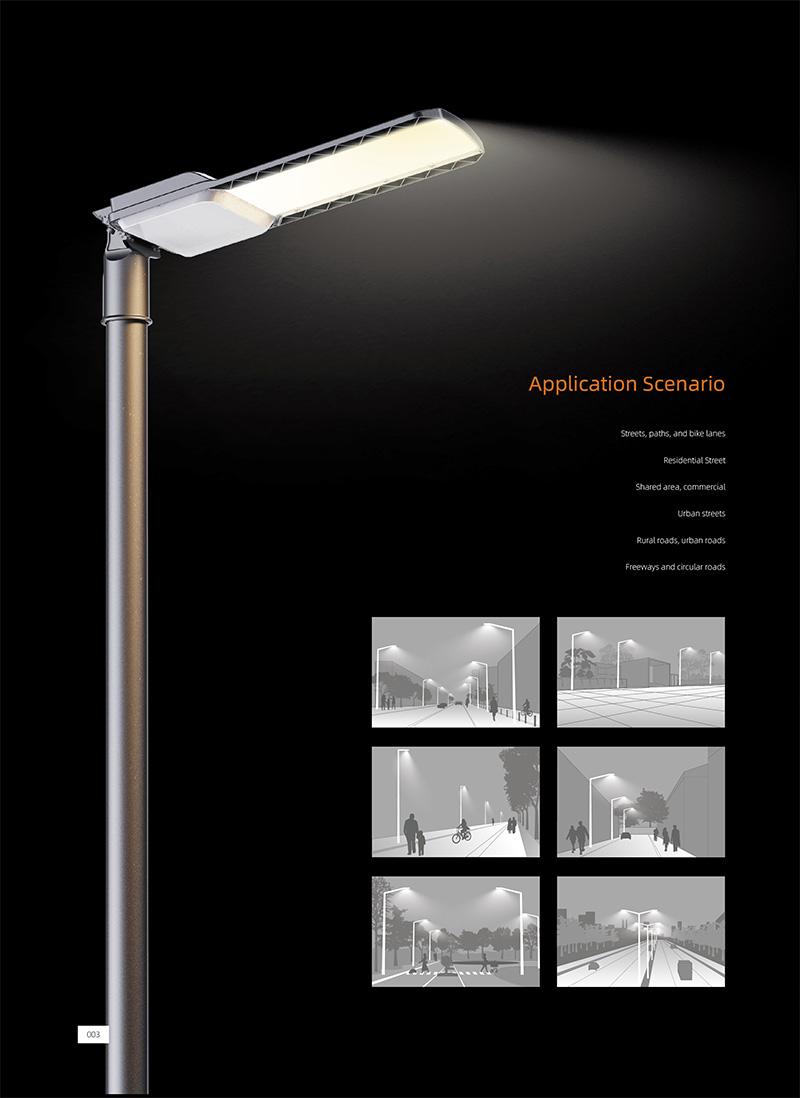

Application Scenario

  • Streets,Paths and bike lanes
  • Residential Street
  • Shared area, commercial
  • Urban streets
  • Rural roads,urban roads
  • Freeways and cicular raods

Technical Norm

General highlights

  1. Used for any outdoor lighting places such as roads, squares
  2. Working temperature: -30 。 C/+50 。 c

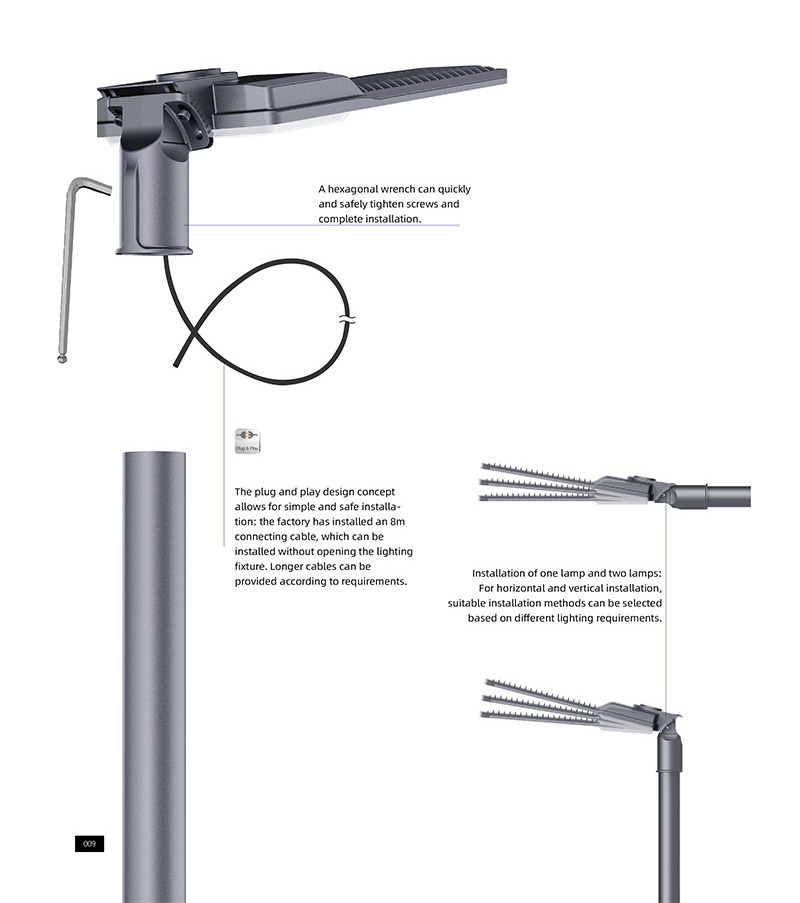

  3. Adopting buckle design for easy installation and maintenanceLumen
  4. Using high-quality chips
  5. Less light decay, long-lasting and durable
  6. Lamp poles with different calibers
  7. Excellent heat dissipation



Optical properties

  1. Different lens arrangements in different areas and installation
  2. Uniform light distribution
  3. Modular design of light source for easy replacement
  4. output(absolute metering): 100o0lm-400oolm
  5. Color temperature: 2200K-6500K
  6. Color rendering index:>70



Shell and Finis

  1. Corrosion resistant die cast aluminum casing Cancer-A Cancer-B
  2. Electrostatic powder coating
  3. Protection level: IP66
  4. Impact protection: IK09

Technical Parameter

Technical  Parameter
МоделEK-LDC16-50WEK-LDC16-100WEK-LDC16-150WEK-LDC16-200W
Моќ50 W100 W150 W200 W
Влезен напонAC100-277V
Фреквентен опсег50Hz/60Hz
Фактор на моќност>0,95
Ефект на целосно осветлување180lm/w
Животен век на LED диодата50000 H
Индекс на рендерирањеCRI70
Температура на бојата2200K-6500K
IPIP66
ИКIK09
Работна температураминус 30+50℃
Температура на складирањеminus 20+60℃  10%-90%RH
Материјал за леќиPC ЛЕЖИВА
Висина на инсталација6-8mm6-8mm8-10 мм10-12 мм

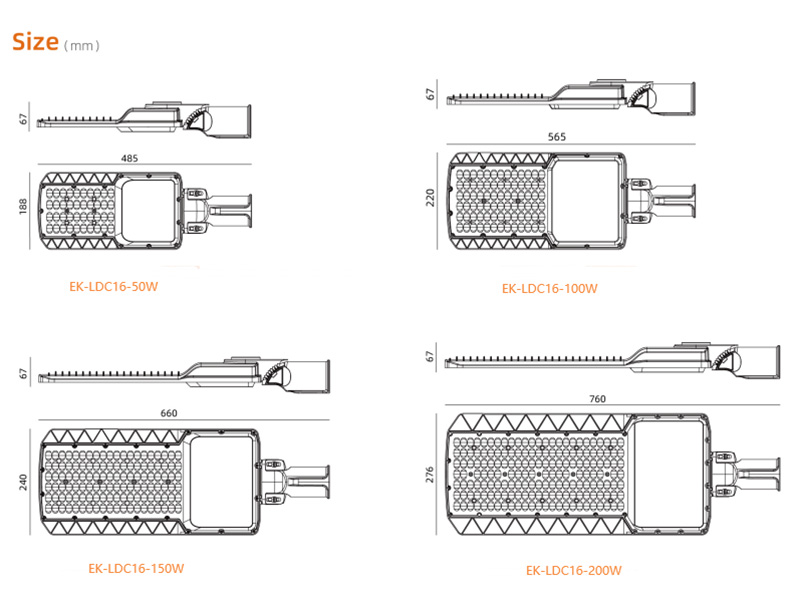

Size

Street Lamp Series

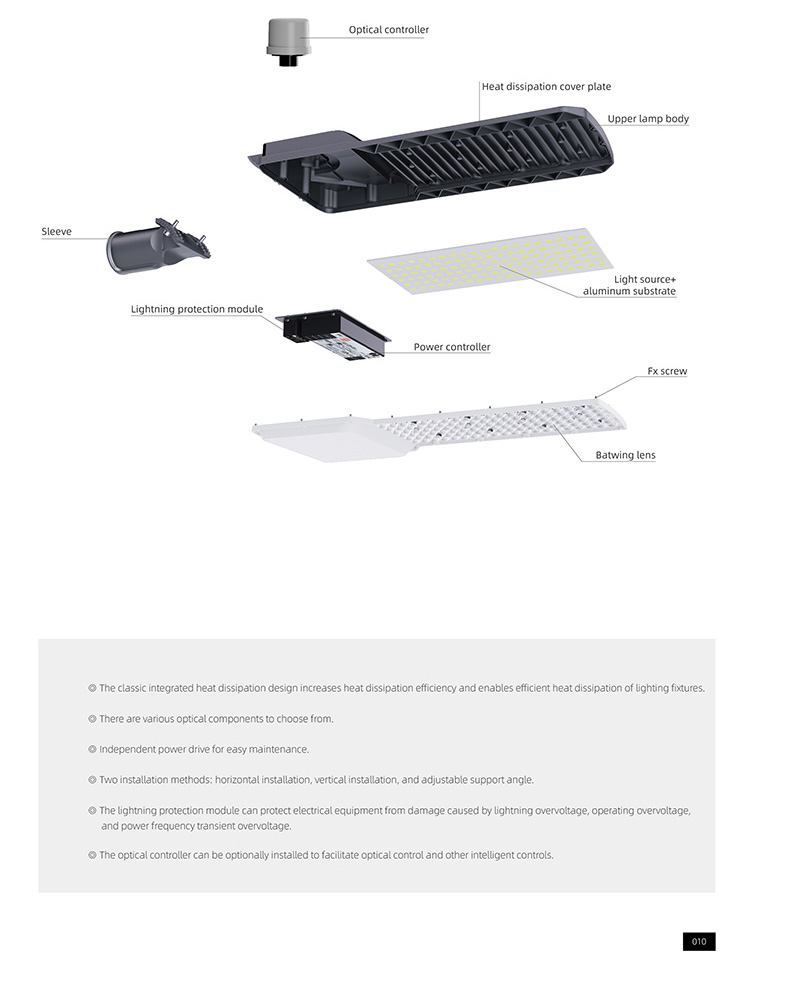

Strcture Display

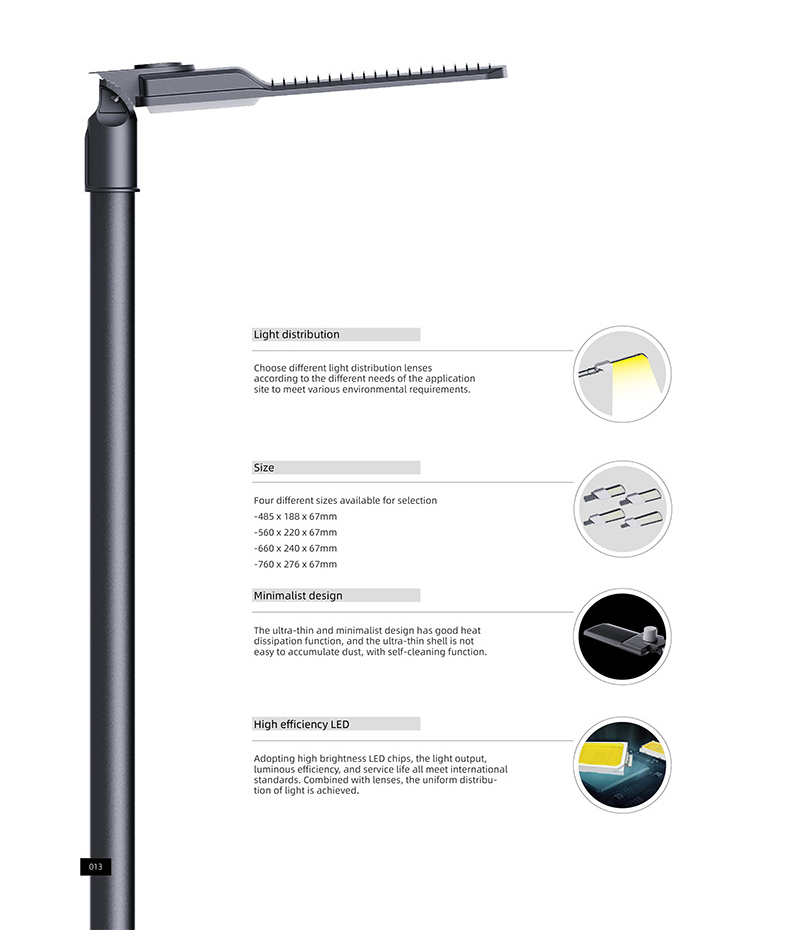

Detail Highlights

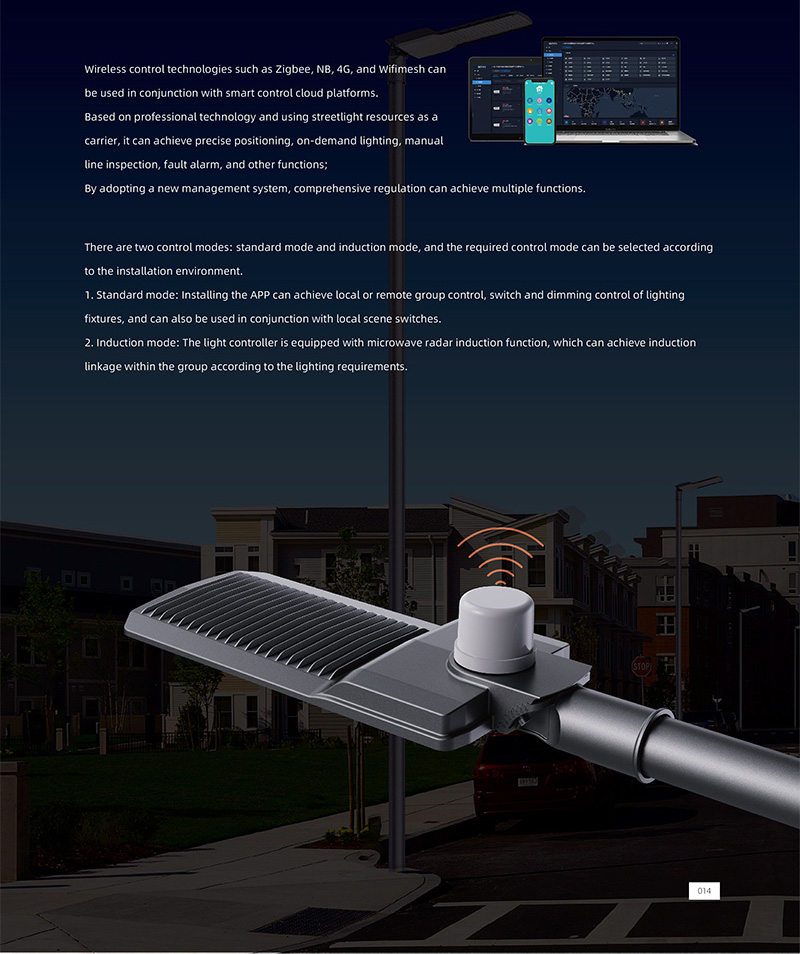

Intelligent Controller Design
