60w high power outdoor solar streetlight
waterproof IP66 LED Solar Street lighting manufacture
Features.:
1. Integrated design, making full use of solar resources, simple, stylish, light, and extremely convenient to install. The integrated solar streetlight does not need to be pulled,
and two or three people can install one in ten minutes. It provides a variety of installation methods. The lamp post is made from local materials.
Iron pillars, wood, bamboo, plastic, etc., low cost.
2. Using solar power supply and LED lighting, the two solutions are perfectly combined to save electricity, protect the earth's environment, and save energy.
3. Large-capacity and long-life lithium iron phosphate battery is adopted, with a theoretical service life of 5 years, good high-temperature characteristics and long service life,
ensuring the service life of the entire product.
4. Alloy material is used as the main structure, which has good anti-rust and anti-corrosion functions; rainproof structure, safe and reliable.
5. Bulit-in with PIR sensor, when someone approaches, the light will be fully on for 60 seconds. When the person walks away, the light will automatically reduce to 50% brightness, effectively saving electricity energy.
Use: This product is easy to use, with one-button operation, as long as the switch is turned on, the product can work normally without adjustment.
Note:
1. Do not disassemble the product without the guidance of our technical personnel;
2. When installing the product, try to avoid trees, buildings, etc.
| Model： | EK-SSL03-L01 | EK-SSL03-L02 | EK-SSL03-L03 |
Mono solar panel | 6V 40W | 6V 50W | 6V 60W |
Battery capacity | 3.2V 42AH | 3.2V 54AH | 3.2V 60AH |
CCT | 2700K-6500K | 2700K-6500K | 2700K-6500K |
| Brightness | 180LM/W | 180LM/W | 180LM/W |
| Светлосен флукс | 2400-2600LM | 3500-3600LM | 5900-6000LM |
| Charging Time | 6~8 hours by bright sunlight | 6~8 hours by bright sunlight | 6~8 hours by bright sunlight |
| Working Time | 12-15 hours (5-7 rainy days) | 12-15 hours (5-7 rainy days) | 12-15 hours (5-7 rainy days) |
| Control Mode | Time control + Microwave induction or Infrared induction | Time control + Microwave induction or Infrared induction | Time control + Microwave induction or Infrared induction |
| IP Rating | IP66 | IP66 | IP66 |
| Mounting Heigh | 6-8 М | 6-8 М | 6-8 М |
| Installing space between 2 Lamps | 20-30M | 20-30M | 20-30M |
| Mounting hole | φ78mm | φ78mm | φ78mm |
| Housing Finish | Polyester powder coating | Polyester powder coating | Polyester powder coating |
| Standard color(s) | Black/Silver Gra | Black/Silver Gra | Black/Silver Gra |
| Materials | Aluminum Alloy Tempered glass Polycarbonate | Aluminum Alloy Tempered glass Polycarbonate | Aluminum Alloy Tempered glass Polycarbonate |
| Сертификати | CE/RoHS | CE/RoHS | CE/RoHS |
| Гаранција | 5 years | 5 years | 5 years |

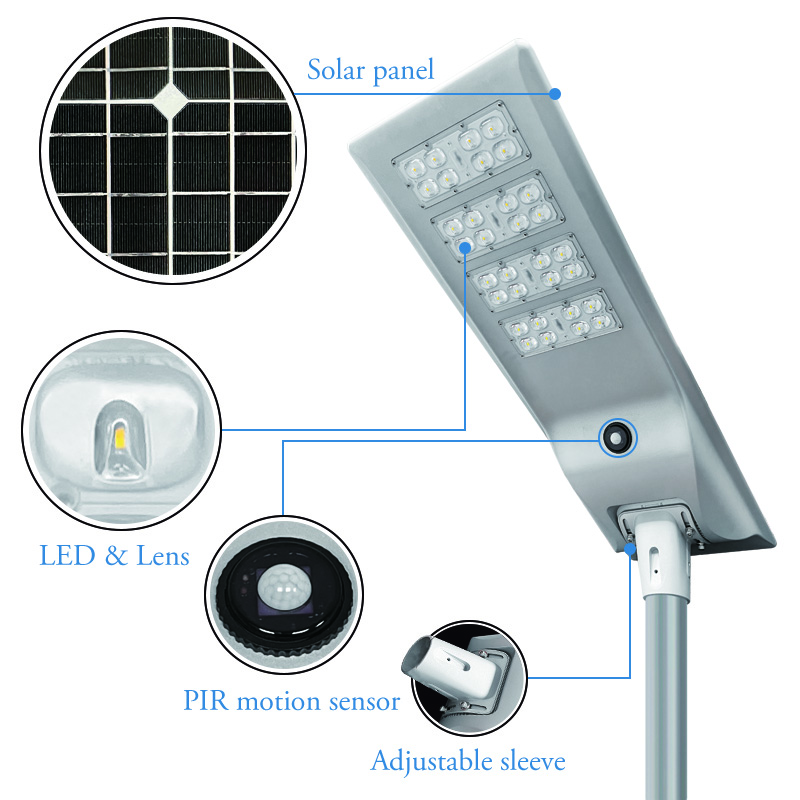

Dissemble illustration
Application:
IP66: The dust density completely prevents the foreign matter invasion and may completely prevent the dust invasion,
Prevents the spray water invasion, prevents from all directions by the nozzle spray water enters the lamps to cause the damage.
IK08: 10J Ударна сила еквивалентна на удар на објект од 5 KG кој паѓа од висина од 200 mm на површина.
